built on experience

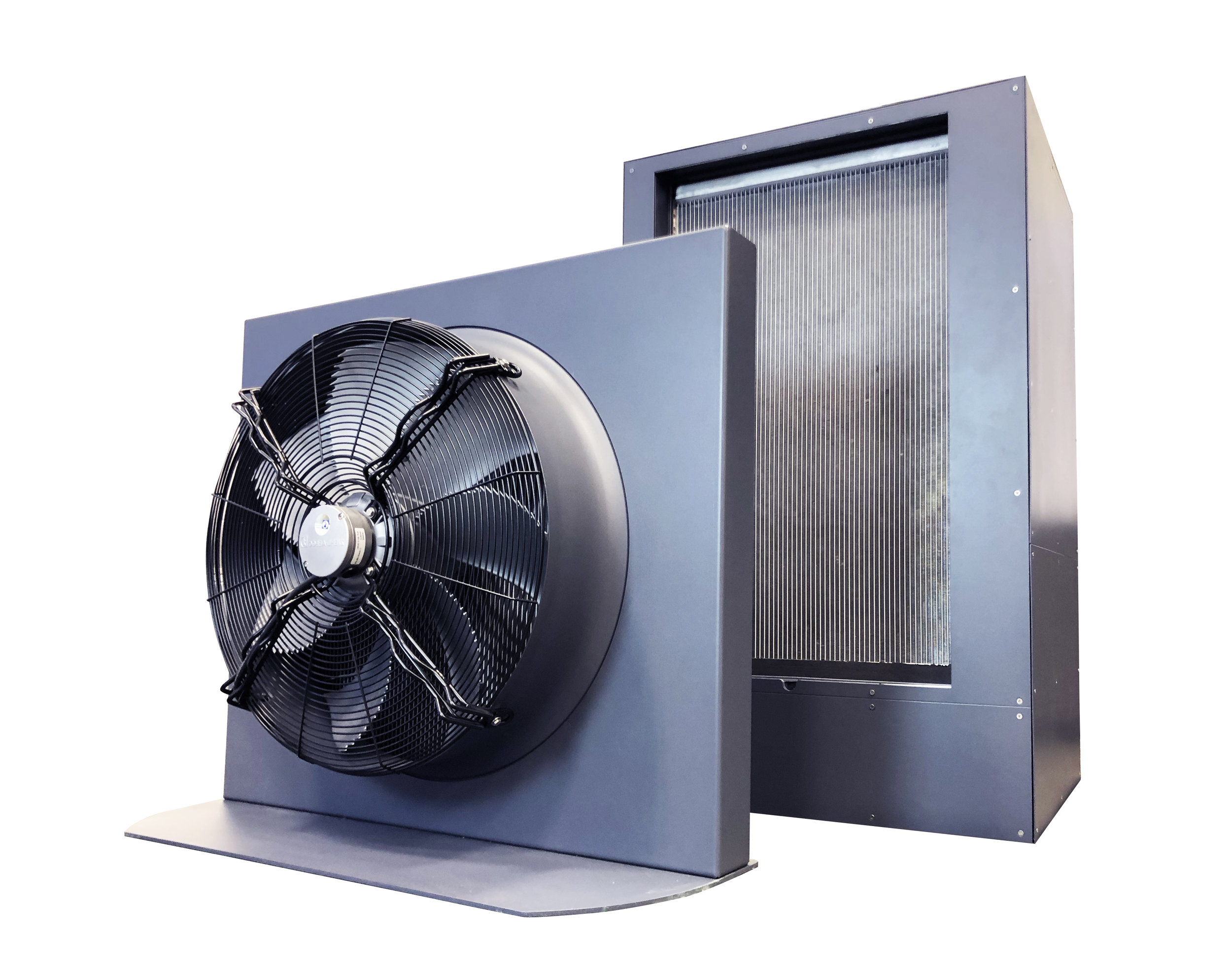

The Evolution Series is built on our next generation all aluminum modular architecture allowing us to integrate the highest grade components available on the market.

indoor air handler

3400 CFM BLOWER

More air turns per hour provide greater control of the environment. It also allows us to use the additional capacity in interesting ways such as our Inline CleanAir Filtration add-on, Fabric Ducting and Zoning Controls.

DUAL SLAB MICROCHANNEL COILS

Utilizing all aluminum microchannel coils allows us to remove over 400+ pints (50 Gallons) per day in moisture removal. The slab coil design dramatically reduces the physical size of the system while maximizing thermal transfer a lot more efficiently.

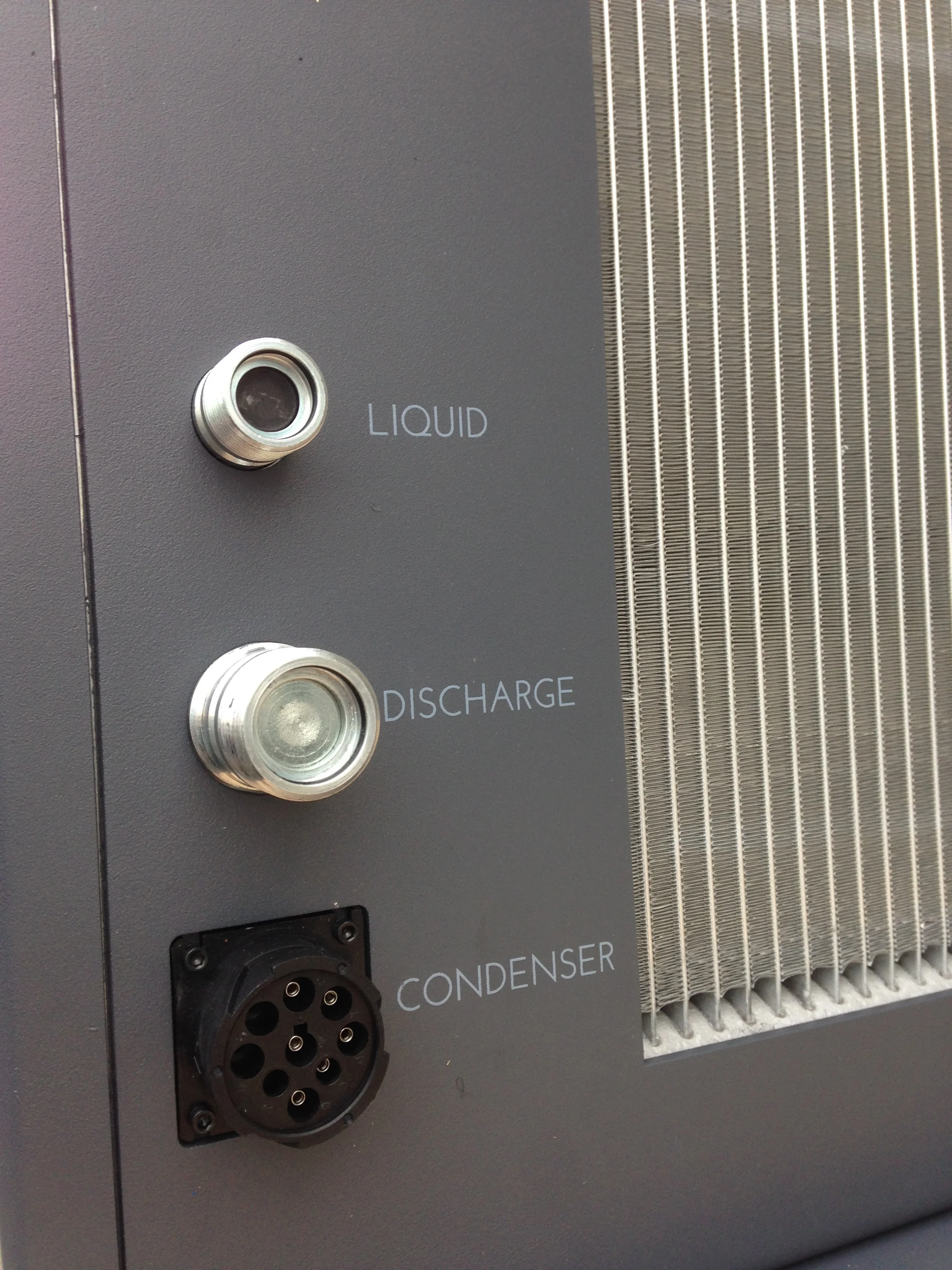

PLUG AND PLAY FITTINGS

Our Gen2 ball bearing Plug & Play Fittings make installation and lineset connection even easier. No tools required! These quick connect fittings are completely re-sealable meaning relocation or swapping out components in critical situations can be done in minutes.

OUTDOOR CONDENSER

LOW AMBIENT CONTROL

All of our systems come stock with Low Ambient Controls allowing the system to operate in -35F outdoor temperatures. This is critical for our customers who require environmental control in their sealed rooms 365 days a year.

NO COMPRESSOR NOISE

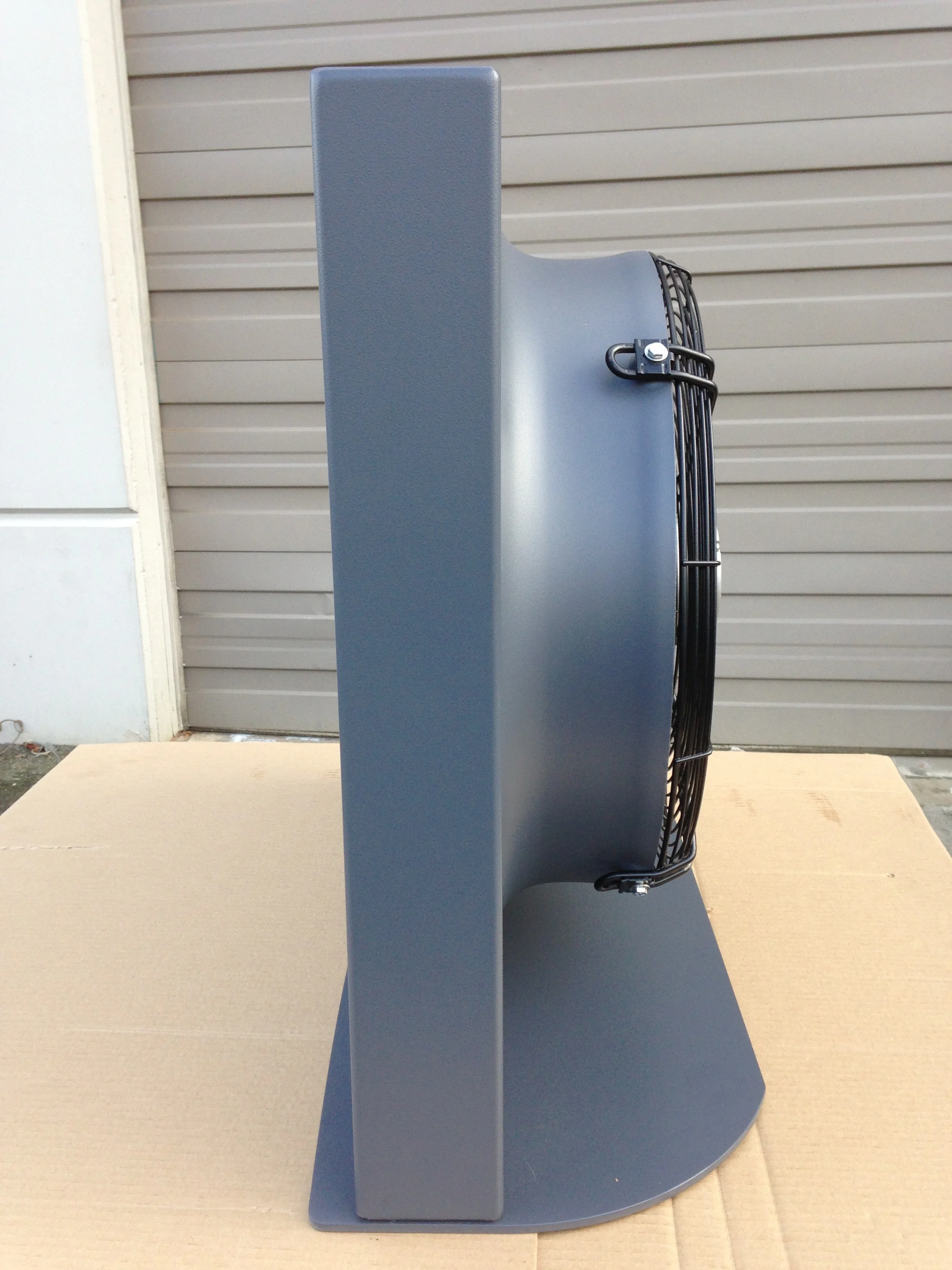

By removing the noisy compressor from the Outdoor Condenser and relocating it to the sound deadened Indoor Air Handler we’re able to produce the slimmest profile condenser on the market allowing for more mounting options as well as no additional power drops required.

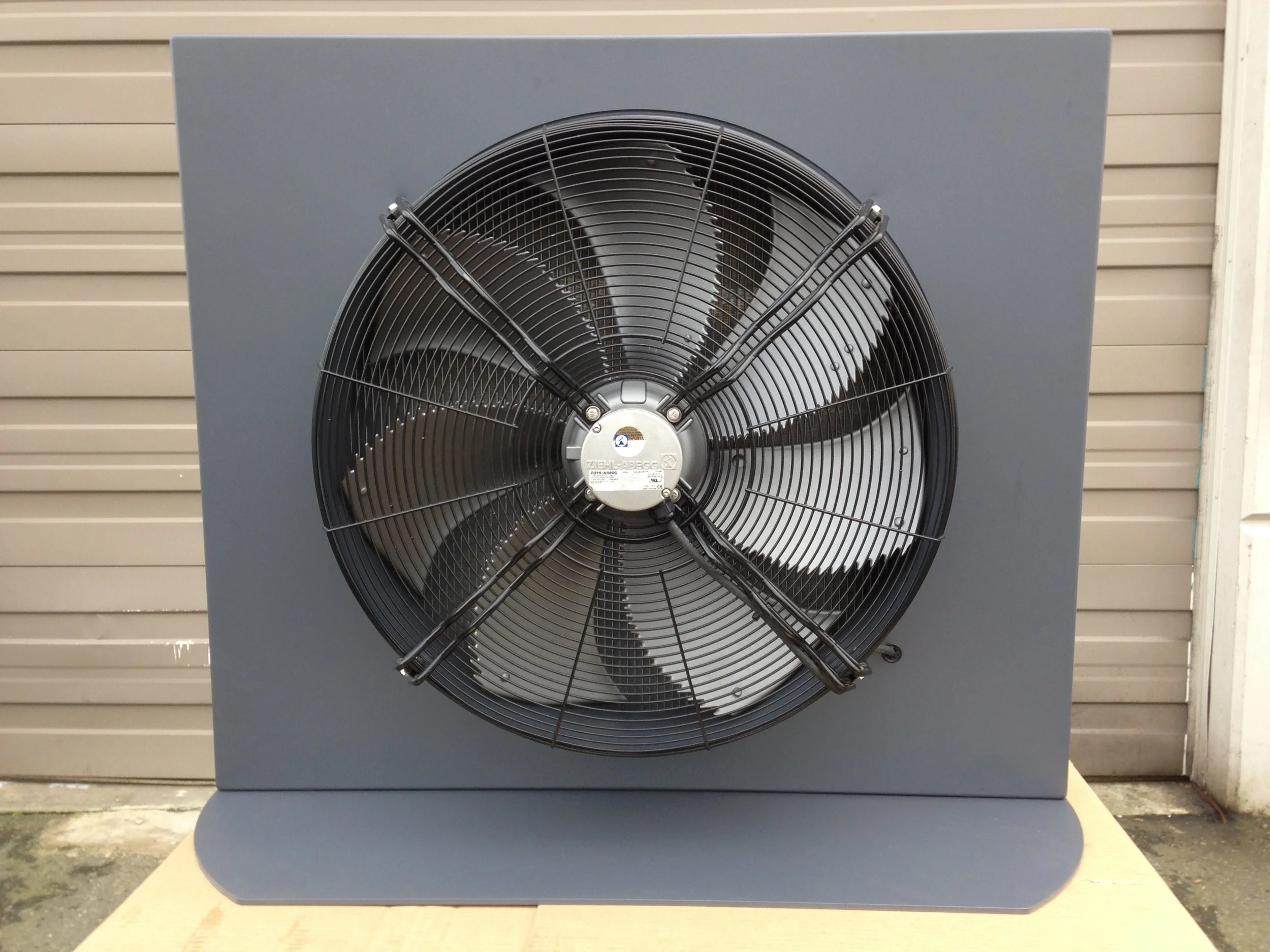

WING TIPPED FAN

Each condenser is equipped with a 7 blade wing tipped axial fan designed to move over 4500 CFM and reduce air noise to the lowest possible level in its class.

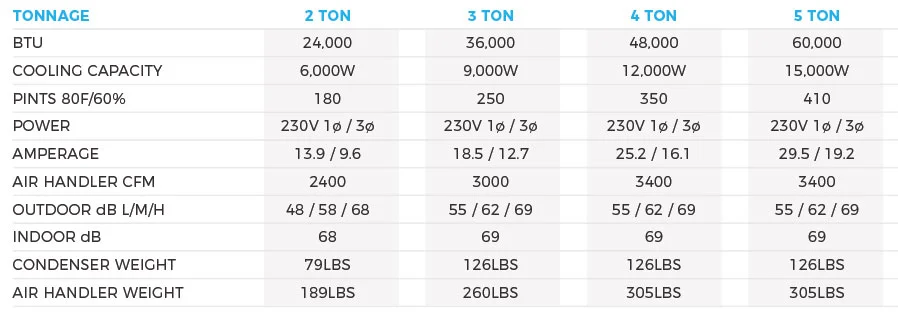

All figures are based on a room with R12 insulation or better at 80F outdoor temperature. Use the graph below to see capacity loss at warmer temperatures.

Downloadable Content

Literature

Catalog

Design Guidelines Manual

Installation Instructions

Compressor Replacement Instructions

Anti-Ice Control Installation Instructions

Cut Sheets

Evolution 5 Ton (Horizontal) Cutsheet

Evolution 5 Ton (Vertical) Cutsheet

Evolution 2 Ton Cutsheet

Submittal Drawings

Evolution 4/5 Ton (Vertical)

Evolution 4/5 Ton (Horizontal)

Evolution 2 Ton

.STL Files

Evolution 4/5 Ton Air Handler

Evolution 4/5 Ton Condenser

UNLOCK NEW ABILITIES

We believe innovation is taking complex things and making them simple. This is why we also offer a handful of unique, simple and effective add-ons that can be added onto any unit.

Fabric Ducting

Even air flow is critical for sealed rooms. We offer engineered ducting specific to your room design. It’s machine washable and sets up in minutes.

UV Air Purification

Kill mildew, spores and bacteria with our UV-C germicidal bulb. It’s designed to be integrated into any Indoor Air Handler ensuring a cleaner, healthier room.

Flexible Lineset

All of our systems come pre-charged but copper pipes can cause headaches during installation. This is why we developed a completely flexible lineset to make installation simple and efficient.

CleanAir Filtration Systems

Our CleanAir Filtration System is designed to remove ultra-fine particulate while eliminating harsh smells.

Hanging Kit

Pre-fabricated hanging kits designed for horizontal air handlers.

Condensate Pump

Why not reuse the condensation collected from your unit and/or pump it where you want it.

Zoning Controls

We have several products that can allow air to be redirected or shared during run cycles.

FREE QUOTE

+

3D ROOM DESIGN

We take pride in our service and support. Take advantage of our free consulting by taking a minute to fill out our SNAPSHOT. Once we receive it one of our Product Specialists will be in touch.
