XL Series
The XL Series Air Cooled Air Conditioning unit is Excel's flagship product and is built from a Split System Design. The Split System design allows for the Indoor Air Handler to act as the blower inside while the Outdoor Condensing unit rejects indoor heat from the refrigerant to the fresh air outside. This unit comes equipped with Plug and Play fittings making it your best choice for quick and easy installations. The XL Series is available in sizes ranging from 2.0 TON (24,000 BTU) to 5.0 TON (60,000).

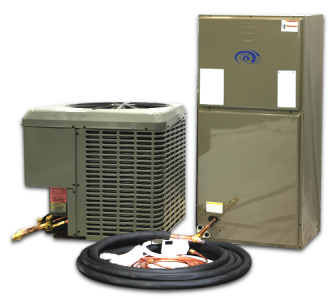

Package Comes complete with
Outdoor Condensing Unit
Indoor Air Handler
40ft Pre-Charged Refrigerant Piping
Programmable Thermostat w/ Pre-Wired 15ft Wire
40ft 18/2 Control Wire
PVC Drain Trap
Step By Step Manual & Wiring Diagram
Key Benefits
Re-Sealable Plug and Play Fittings
All fittings are Brass (Rust Free)
Low Ambient Control on Outdoor Condenser
Vertical or Horizontal Mounting
Industries best support!
| Capacity | BTU | Cooling Load |
|---|---|---|
| 2.0 TON | 24,000 | 6,000 Watts |
| 2.5 TON | 30,000 | 7-8,000 Watts |
| 3.0 TON | 36,000 | 9,000 Watts |
| 3.5 TON | 42,000 | 10-11,000 Watts |
| 4.0 TON | 48,000 | 12,000 Watts |
| 5.0 TON | 60,000 | 15,000 Watts |
| Based on 80F outdoor temperature R12 insulation or better, burning Co2 Available in 208/230 & 460V 1/3 Phase |
||
PLUG AND PLAY
Plug and Play refrigeration fittings make air cooled units simple to install by yourself; without the need of a certified installer. Each refrigeration line is pre-charged with the correct amount of refrigerant for your system. Just thread the fittings together and startup your system! The fittings are re-sealable unlike the generic units on the market, meaning, if you need to take your system out for servicing or relocation of your unit, no refrigerant is lost and can be simply reconnected.
Recommended Accessories
UV Air Purifier
The Excel UV Air Purifier is designed to change the molecular structure of the contaminants through DNA Sterilization using UV-C (254nM). It Will kill mold, bacteria and viruses!
Dual Room Damper Package
Control 2 rooms with 1 system on a 12hr flip using motorized dampers. This package can be added onto any system.
FABRIC DUCT
A high quality polyester fabric duct engineered specific to your system. Evenly disperse the air throughout your space to eliminate hot and cold spots within your sealed room.
Electric Heater
Easily add-on a 5-20kW Heater to inside Air Handler to maintain nighttime temperature.
Top PLENUM
Adding a plenum to your Excel Air Systems units allows you to direct the airflow to the opposite end of your room or easily connect ductwork to your system.
Flexible linseeds are now a possibility! No more kinking or bending soft copper! Connecting your indoor and outdoor unit has never been easier.
