Details make or break a product. This is why we've carefully crafted a product with incredible abilities but entirely simple to install.
Indoor Air Handler
Height: 54"
Width: 29 1/2"
Depth: 29 1/2"
Overall Weight w/ Compressor: 300lbs
Color: Proto Grey
Blower Module
Aluminum Frame with panel snaps
Fan: 19" Composite Backwards Incline
Motor: 1030RPM 230V 3 PHASE 60hz @ 2.1A
CFM: 3400 Max @ 0.6" Static Pressure***
Integrated Plenum
*UV Purifier Ready
*Ability to size down fan
***Max CFM is 2100 CFM when Inline Filtration Module is connected @ +1.0" Static Pressure
Coil Module
Aluminum Frame with panel snaps
Coil: Dual Microchannel Evaporator
Drainage: Vertical/Horizontal composite drainpan
Filtration: 2" Standard filter *Upgradable to higher Merv Rating
Connector Panel: Quick Connect Fittings (Suction, Liquid, Discharge) Turn & Lock (Thermostat, Condenser)
Compressor Module
Aluminum Frame with panel snaps
Compressor: Integrated into sound deadened box with Quick Connect fittings
Power: 24,000 - 60,000 BTU
Electrical Panel: Fully sealed control panel with all relays, contacts and wire terminations
Slide Rails for quick compressor mounting (Vertical & Horizontal)
OUTDOOR CONDENSER
Height: 34"
Width: 39 1/2"
Depth of Coil: 4"
Depth of Fan: 14"
Weight: 200lbs
Color: Proto Grey
Capacity: 60,000 BTU
Fan: 25" Circular fan with wing tip blades
Motor: 990RPM 230V 1 PHASE 60hz @ 4.7A
CFM: 4700 @ .5" Static Pressure
Aluminum enclosure with steel fan curve
Low Ambient Control (outdoor extreme cold rated)
Quick Connect Fittings (Liquid, Discharge)
Turn & Lock Control Connections
Dual Mount baseplate for two configurations (Standard, Low Clearance)
Super Slim Design

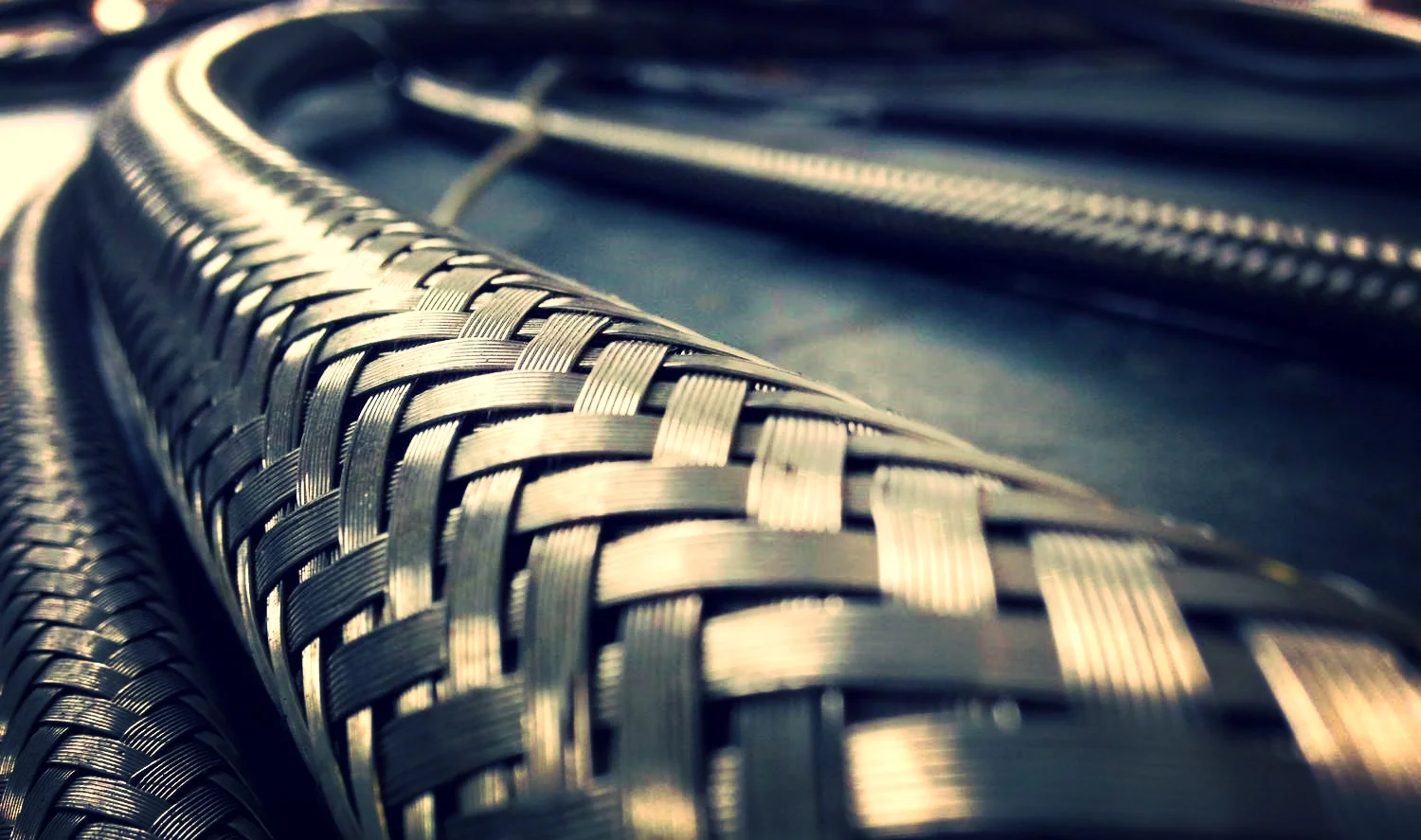

Flexible Lineset
Polyamide sleeve, flexible aluminum barrier and weather resistant rubber cover
Next Generation Quick Connect Ball Bearing Fittings
Pre-Charged R410A 650+ PSI Rated
Thermostat & Control Wires
Nest Wifi Thermostat
Control both Temperature & Humidity 24/7 Remotely
Pre-Wired with Turn & Lock connector, no wiring required
All Control wires come completely pre-done with Turn & Lock connectors
Anyone can install effortlessly
